A&D SW-60KM - 60kg x 0.01kg High Pressure Washdown Bench Scale

A&D SW-60KM - 60kg x 0.01kg High Pressure Washdown Bench Scale

$2,948.38 CAD
$2,948.38 CAD
Sale Sold out
Shipping calculated at checkout.
SKU

Estimated Lead Time: 10-14 days
  • Washdown Rating: IP69K
  • Measurement Canada Certification Class: Class III
  • Reminder: This scale is Legal for Trade and must be certified by a Measurement Canada–licensed technician before use in commercial transactions.

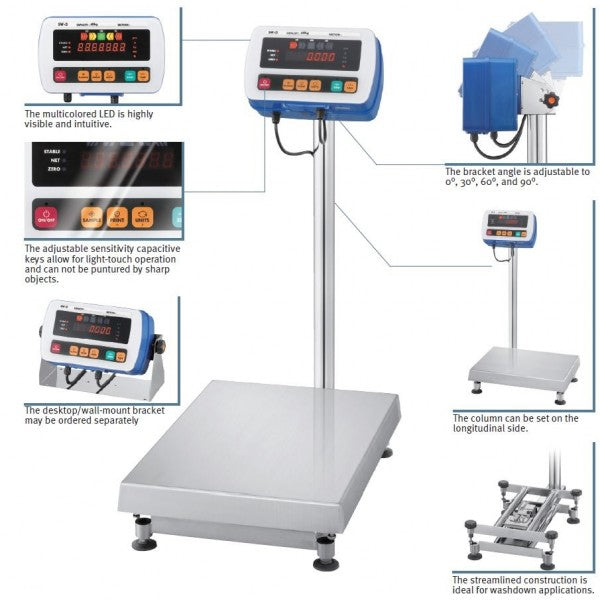

A&D SW-60KM - 60kg x 0.01kg Legal for Trade High Pressure Washdown Scale with Medium Pan

A&D SW-60KM is ideal for food processing applications where cleanliness and sanitation are crucial.  Designed to stand up against stringent dusty or wet process conditions and will endure extreme high pressure and temperature water to 1450 psi and 175-degree F. IP69K rated - the highest level of dust and water-proofing and the ultimate protection against the effects of condensation.

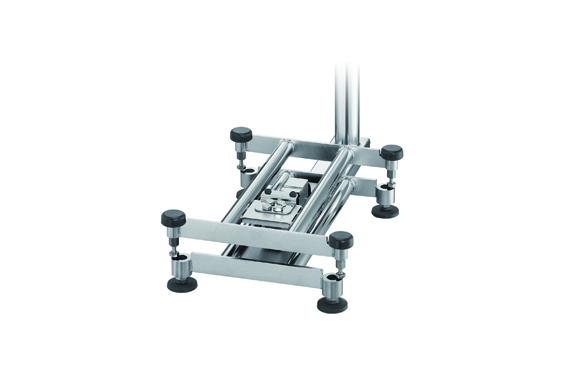

Features a stainless steel weigh pan, frame and a hidden sealed load cell. Easy to clean design reduces food-processing residues.  Sizable keys and vivid, multi-colour LED display makes SW-60KM easy to use.

Specifications:

Capacity 130lb / 60kg / 2100oz
Readability 0.02lb / 0.01kg / 0.5oz
Number of samples 5 (can be changed to 10, 20, 50 or 100) pieces. Increasing sample count improves accuracy.
Maximum count 120,000 pcs
Minimum unit weight 0.5g
Repeatability (Std. Deviation) 0.02lb
Linearity ±0.05lb
Sensitivity drift ±20ppm / °C (5°C to 35°C / 41°F to 95°F)

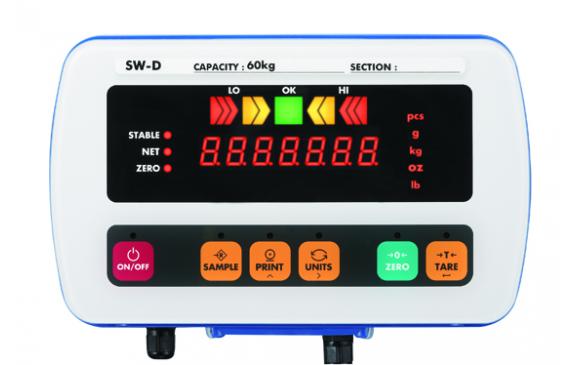

Display Display of weight: 7 segment LED display (character height 14.6 mm) Comparator lights: Red/Yellow/Green/Yellow/Red LEDs
Display update 10 times per second
Operating conditions -10°C to 40°C / 14°F to 104°F, 85% R.H. or less (non- condensing)
Power supply AC main (100V-240V) or SLA Battery (option), Approximately 90 hours operation
Pan Size 300 x 380 mm / 11.8 x 15.0 in.
Dimensions 11.8 x 23.7 x 28.4in / 390 x 751 x 722.5mm
Weight (approximate) 13.0 kg / 28.7 lb
Shipping Weight 17.4 kg / 39 lb
Calibration Weight 120lb / 60kg


Additional Literature:

SW Series Literature

SW Series Manual
Measurement Canada Approval AM-5845
