A&D AD-4212A Precision Weighing Modules for OEM Automation

A&D AD-4212A Precision Weighing Modules for OEM Automation

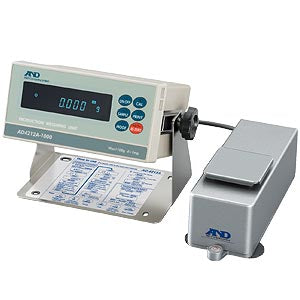

The A&D AD-4212A Series is a compact precision weighing module platform designed for integration into OEM equipment, automated production systems, robotics, filling lines, dispensing systems, and inline checkweighing applications.

With fast stabilization, high-resolution weighing, a separate weighing sensor and display unit, and standard RS-232C communication, the AD-4212A Series gives engineers and equipment builders a reliable way to add precision weighing directly into automated machinery and production workflows.

Why Choose the A&D AD-4212A Series?

• Fast stabilization: Designed for high-throughput production weighing where speed matters.
• High-resolution weighing: Models available from 0.1 mg readability to 1 mg readability depending on capacity.
• Compact sensor unit: Slim separate weighing sensor unit helps fit the module into tight equipment layouts.
• Separate display/control unit: Allows the weighing section and operator/control area to be positioned separately in the equipment design.
• Automation-ready communication: Standard RS-232C output supports connection to a PC, PLC, HMI, printer, or data collection system depending on the setup.
• Comparator output: Supports pass/fail or tolerance-based production workflows using comparator contact output.
• External control support: RE-ZERO and PRINT functions can be controlled through external connection for automated operation.
• Adjustable response characteristics: Helps users tune performance for environments affected by drafts, vibration, or production movement.
• Overload protection design: Built to help protect against vertical and transverse overloads caused by actuator movement or equipment handling.
• Canadian A&D support: Supplied through A&D Weighing Wholesale Canada, operated by Cambridge Environmental Products, an authorized Canadian A&D master distributor.

Available AD-4212A Models

AD-4212A Series Specifications

Engineering and Integration Notes

The AD-4212A Series is intended for users building precision weighing into equipment rather than simply placing a standard balance on a bench. The separate weighing sensor design makes it easier to integrate the weighing section into custom fixtures, guarded enclosures, automation cells, and production equipment.

For best performance, the weighing module should be installed in a stable mechanical setup with proper vibration control, draft protection, static control, and suitable sample handling. For robotics or actuator-based loading, the system design should avoid shock loading, side loading, pan impact, and over-travel conditions.

Common Questions About the AD-4212A Weighing Module

What is the A&D AD-4212A used for?

The AD-4212A is used to add precision weighing directly into automated equipment, OEM machinery, robotics, filling systems, dispensing systems, inline checkweighers, and production inspection workflows.

Is the AD-4212A a load cell?

The AD-4212A is better described as a precision weighing module or weighing sensor system. It provides balance-level weighing performance with a separate weighing unit, display/control unit, and communication output, making it different from a basic load cell that requires separate signal conditioning and weighing electronics.

Which AD-4212A model should I choose?

Choose the AD-4212A-100 when 0.1 mg readability is required. Choose the AD-4212A-200, AD-4212A-600, or AD-4212A-1000 when 1 mg readability is acceptable and higher capacity is needed. The best model depends on sample weight, required resolution, cycle time, pan size, environment, and integration method.

Can the AD-4212A connect to a PLC or PC?

Yes. The AD-4212A includes RS-232C communication as standard. Depending on the control system, additional hardware, interface options, or programming may be required for PLC, HMI, Ethernet, or plant-level data collection.

Is the AD-4212A suitable for robotics?

Yes, the AD-4212A can be used in robotic weighing and automated handling systems when the mechanical design protects the weighing module from impact, side loading, over-travel, vibration, and drafts.

Can I build my own weighing pan or fixture?

Yes. The AD-4212A platform supports custom weighing pan or fixture design, but the final setup should be reviewed carefully to avoid weighing errors caused by mechanical stress, vibration, contact points, or improper load placement.

What industries use precision weighing modules like the AD-4212A?

Common industries include pharmaceutical manufacturing, chemical production, food production, cannabis processing, cosmetics and personal care production, industrial automation, electronics, component inspection, research, and quality control.

Where can I buy the A&D AD-4212A in Canada?

A&D Weighing Wholesale Canada supplies AD-4212A precision weighing modules in Canada through our network of Canadian dealers from coast to coast.
