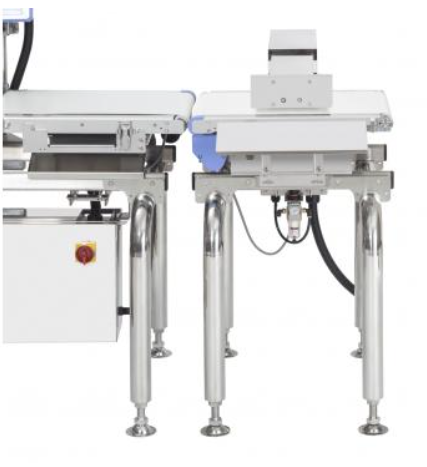

A&D Pusher Rejector for In-Motion Checkweighing

A&D Pusher rejector for AD-4961-6K-3050 6,000g Checkweigher. Push mechanism provides linear thrust to discard non-conforming products.

• Up to 60 pcs/min
• Single Channel Rejector
• Compatible with AD-4961-6K-3050

Model	AD-4983-3050
Conveyor belt width	300mm
Conveyor length	500mm
Screening capacity1	60pcs/min
Air supply2	0.5MPa, 0.3 NL/time

¹ Depends on the shape and the condition of the product and installation environment.
² Please prepare an air compressor with a Φ6mm air tube to be connected to the filter regulator of the rejector.
