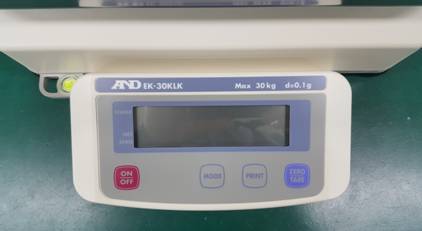

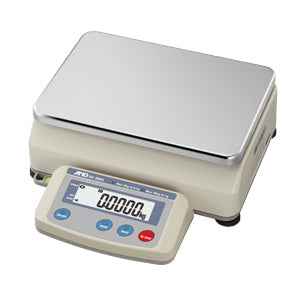

A&D EK-KL Series Precision Scale with Underhook

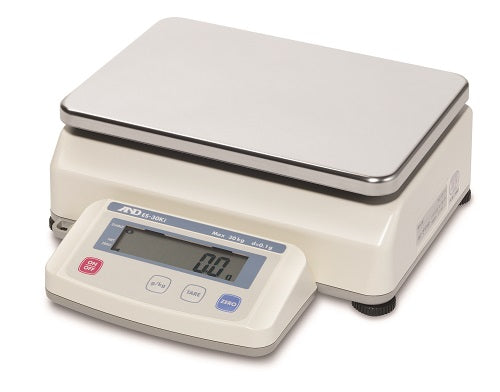

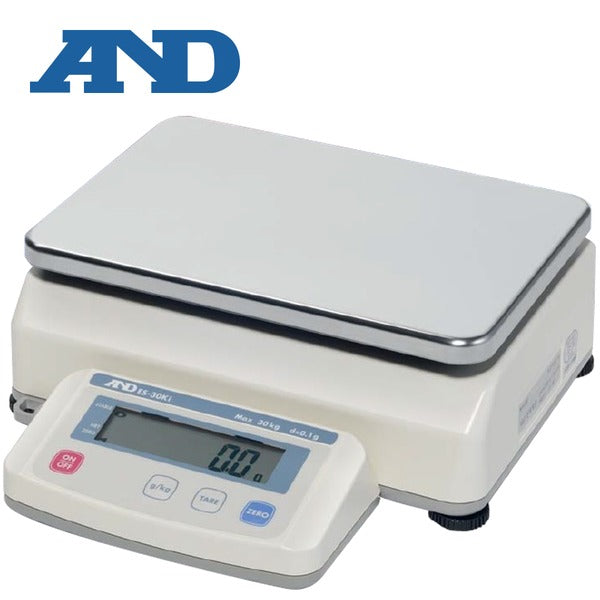

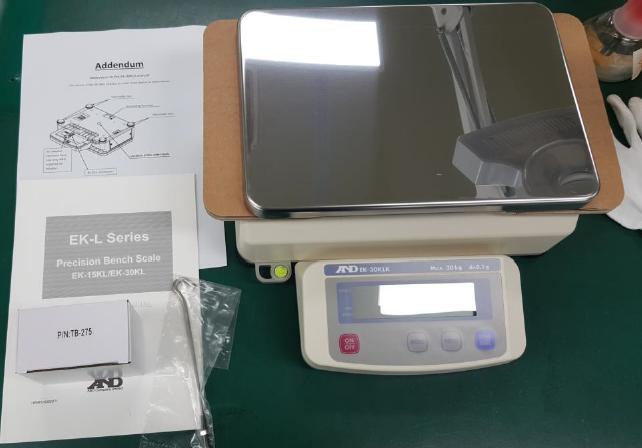

A&D EK-30KLK Precision Bench Scale with Underhook

A&D EK-30KLK is a high capacity, high resolution precision bench scale. Ideal for use when large capacity and high resolution are required at the same time. Features a below scale under hook - useful for measuring specific gravity. This scale is ideal for wet weight weighing, and asphalt weighing applications.

A&D EK-30KLK has a large, stainless steel weighing platter with easy to read LCD backlit display. Built on a cast metal base with ABS housing, includes RS-232 connection.

Application modes:

parts counting
percent weighing
HI/LOW/OK Comparator
Display hold

Features:

Security ring for wire-locking the scale to prevent theft
Data output to a PC or printer, via RS-232C interface
Auto Power-OFF function. Operation with either AC adapter or optional rechargeable battery

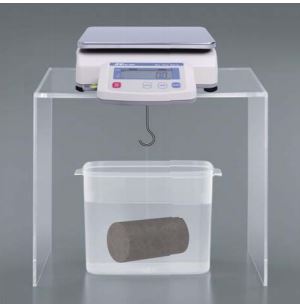

Under Hook Weighing for measuring Specific Gravity

Specifications:

A&D - EK-30KLK
Capacity	30 kg
Readability	0.1 g
Pan Size	11.8 x 8.2"
Multiple weighing units	g, kg, pcs, % LB,OZ
Repeatability (standard deviation)	0.3 g
Linearity	±0.6 g
Sensitivity drift	±20 ppm/°C (50 to 86°F / 10 to 30°C)
Counting mode	Minimum unit weight: 0.1 g Number of samples: 5, 10, 25, 50 or 100 pieces
Percent mode	Minimum % display: 0.1% Minimum 100% weight: 10 g
Operating temperature	50 to 104°F / 10 to 40°C 85% RH or less (no condensation)
Battery life (on a full charge)	Approximately 100 hours (at 25°C with backlight off)
Net weight	9.3 lbs
Calibration weight	15 kg
Shipping weight/dimensions	25 lbs / 19 x 14 x 24 inches
Warranty	2 Years

Available Literature:
A&D EK-30KLK Manual
A&D EK Series Datasheet

Estimated Lead Time for most out of stock items is 10-14 days to bring in from A&D
Inventory Availability:

Estimated Lead Time: 10-14 days
